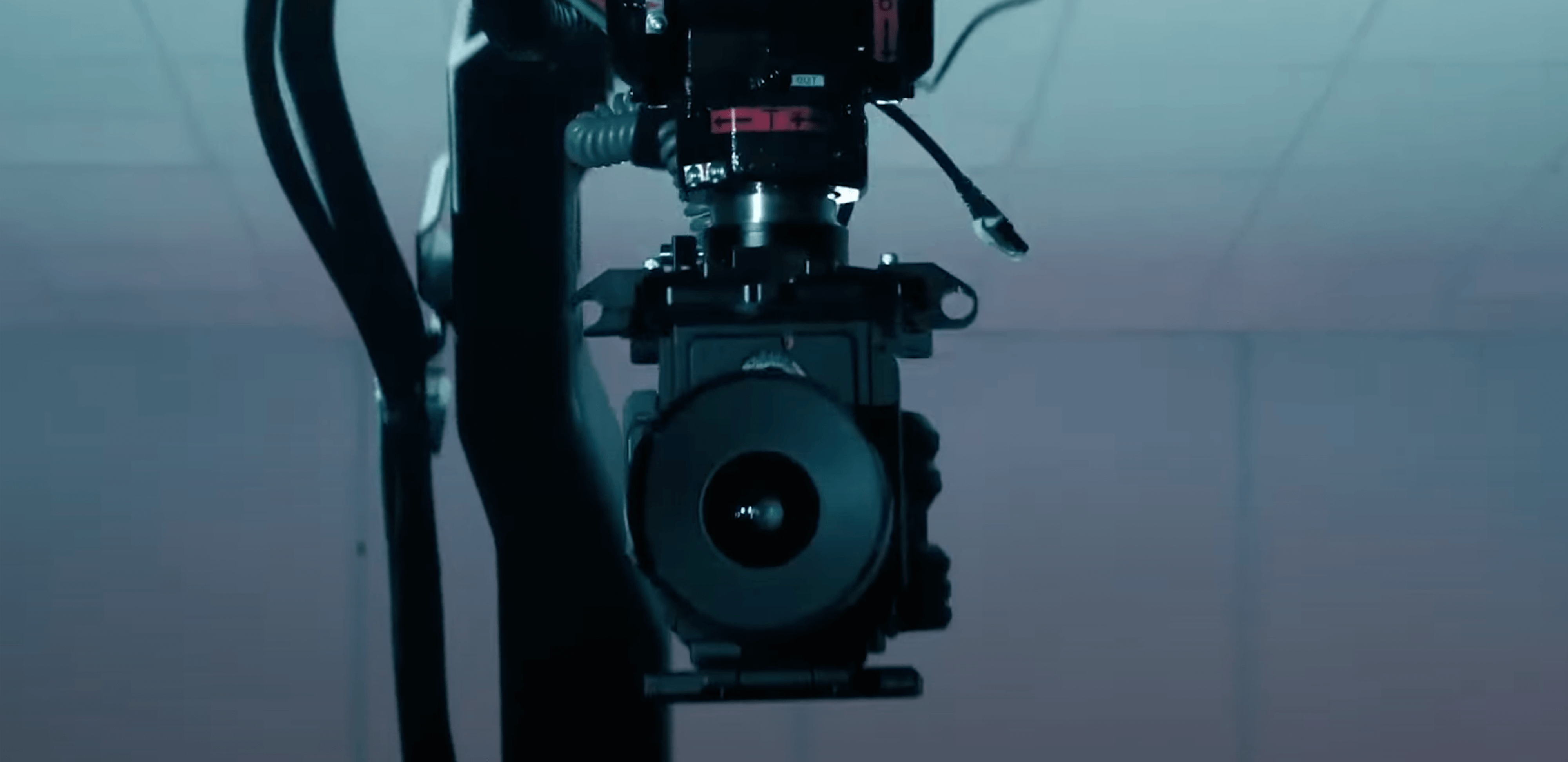

Bolt Jr+ High Speed Cinebot on Track
Bolt Jr+ is a compact, lighter weight high-speed camera robot with a longer reach than the original Bolt Jr. The agile, smaller rig also comes with an increased camera payload (22lbs/10kg) and is an ideal solution for smaller spaces or location work.
Narrow Precision Rail Option
Our Bolt JR+ is equipped with a special narrow version of the precision track, which allows it to sprint through very tight spaces. It’s also compatible with the standard track, handy if you wanted to share track with the Bolt or Milo.
Specifications
Bolt JR+ on Track | feet | meters |
Max Height (from ground) | 8.2 ft | 2.5m |
Lowest position | 0 ft | 0 m |
Maximum reach (from rotate center) | 4.6 ft | 1.4 m |
Rig Dimensions
Lowest Transport Height | 5 ft | 1.9 m |
Base Width | 30 in | 770 mm |
Weights
Bolt Jr+ | 318 kg (701 Ibs) + Transport wheels 50 kg (110 Ibs) |
Maximum camera payload | 10 kg / 22 lbs |
Performance
Arm Arc Move Max. Speed @ Camera | 16.4 ft/sec | 5 m/sec |
Arm with Track Max. Speed @ Camera | 26.24 ft/sec | 8 m/sec |
Track | Unlimited range of travel |
Rotate | +/- 190˚ range of travel |
Lift | +150˚/ -90˚ range of travel |
Arm | +157˚ / -10˚ range of travel |
Pan | +/- 200˚ range of travel |
Tilt | +/- 120˚ range of travel |
Roll | +/- 360˚ range of travel |
Power Connection
| Power requirements | 1 x 200-220 VAC |
