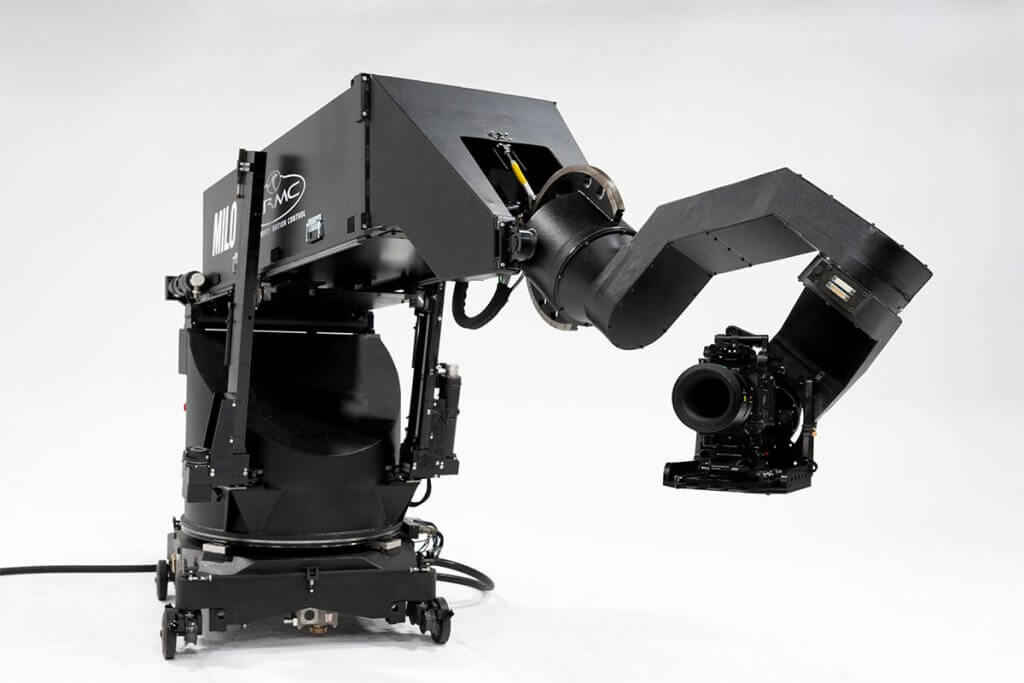

MRMC Milo
The Gold Standard of Motion Control.
The Academy Award winning Milo is the industry standard for precision camera movement. A frame accurate, high precision rig, perfect for macro, tabletop or CGI work. Milo rental Atlanta now available.
Specifications
Milo | feet | meters |
Maximum Height | 13.6 ft | 4.12 m |
Lowest position | -2ft 9in | -0.84 m |
Maximum travel (from sub floor) | 16ft 3in | 4.96 m |
Maximum reach (from edge of track) | 8 ft | 2.4 m |

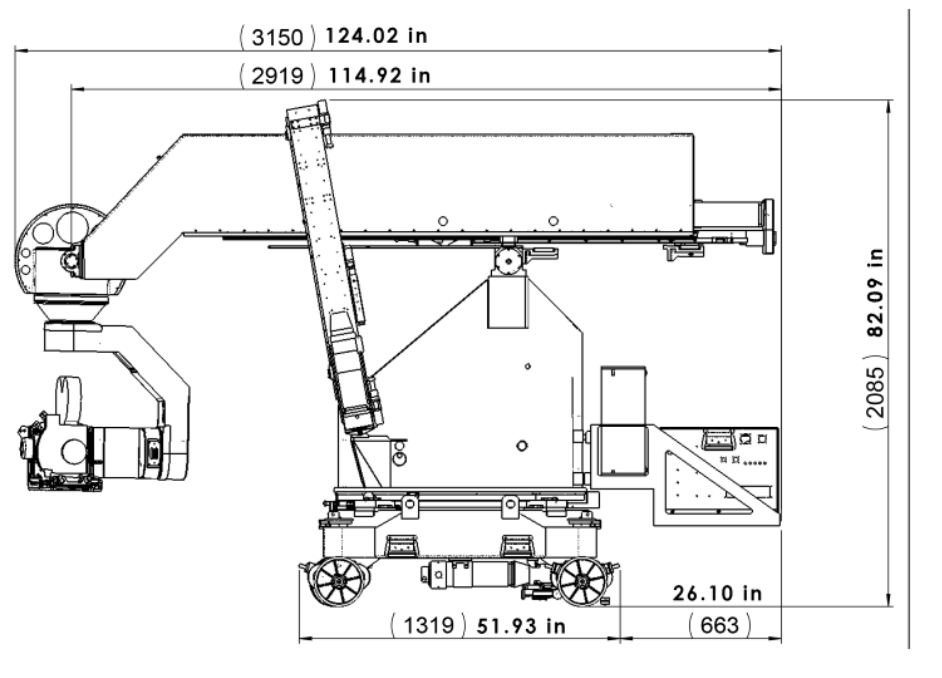

Rig Dimensions |
|
|
Lowest Travel Height | 6ft 10in | 2.09 m |
Lowest Rig Height (on Track) | 7ft 3in | 2.21 m |
Rig Width | 4ft 4in | 1.27 m |
Longest Rig Length | 15ft 10in | 3.15 m |
Shortest Rig Length | 9ft 7in | 2.92 m |
Bolt JR+ on Track | feet | meters |
Max Height (from ground) | 8.2 ft | 2.5m |
Lowest position | 0 ft | 0 m |
Maximum reach (from rotate center) | 4.6 ft | 1.4 m |
Performance
Axis | Range of Travel | Maximum Speeds |
Track | As required in 10ft lengths | 6 ft (2m)/sec |
Rotate | Unlimited | 30 deg/sec |
Lift | +/- 45 deg | 24 deg/sec |
Arm Extension | 1 m (3.3 ft) | 1.3 ft (38cm)/sec |
Outer Arm | 225 deg | 40 deg/sec |
Pan | Unlimited | 120 deg/sec |
Tilt | 290 deg | 120 deg/sec |
Roll | Unlimited | 120 deg/sec |
Power Connection
Stage: 120V | Generator: 5 Kilowatt Minimum |
Weights
| Pounds | Kilograms |
Milo Rig | 1200 lb | 545 kg |
Precision Track (10ft / 3m length per piece) | 200 lb | 90 kg |
Power Supply + Driver Unit | 273 lb | 124 kg |
Flair Console Flight Case | 60 lb | 27 kg |
